Concrete Floor Thickness Guide for Car Hoist Installation

Essential Factors to Consider for Effective Car Hoist Installation in Your Garage

When contemplating the installation of a car hoist in your garage, it is crucial to ensure that your concrete floor adheres to the necessary specifications. A strong and stable foundation is imperative for the efficient operation of the hoist and plays a vital role in protecting both your vehicles and individuals using the equipment. Careful preparation and strict compliance with installation guidelines can significantly enhance both the functionality and lifespan of your hoist, ensuring that your investment is a wise one.

The majority of car hoists necessitate a concrete slab that is at least 100mm (4 inches) thick. This specific measurement is essential as it facilitates the even distribution of weight from both the vehicle and the hoist, thereby greatly diminishing the risk of cracking or sinking over time. For more robust hoists, it is prudent to consider a thicker concrete slab, potentially increasing to 150mm (6 inches), to guarantee optimal performance, stability, and safety during operation.

Comprehensive Guide to Assessing the Ideal Concrete Thickness for Your Car Hoist Setup

The thickness of your concrete floor is a key component in the safe installation and operation of a car hoist. It is vital to consider various factors when determining the appropriate depth for your slab to ensure it can adequately support the loads it will encounter during use. Understanding these elements can help you avert costly errors while enhancing the overall safety of your garage setup.

Determining Load Capacity for Your Car Hoist Installation

Car hoists exert substantial stress on the concrete floor beneath them. Therefore, it is crucial to comprehend the total weight that your concrete floor must support. This consideration includes not only the weight of the vehicle itself but also the weight of the hoist, which can add a significant load to the floor.

A standard passenger vehicle generally weighs between 1,500 to 2,000 kg, while the hoist itself may contribute an extra weight of 500 to 1,000 kg. Moreover, it is wise to factor in additional weight as a safety buffer to ensure that the structure can handle unforeseen circumstances. This thorough assessment will assist you in maintaining a safe and secure garage environment.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is typically adequate. However, if you intend to lift significantly heavier vehicles, it may be necessary to consider a thicker slab to ensure safety and stability during operation.

Engaging with a structural engineer is a wise decision. They possess the expertise necessary to offer tailored advice and assist you in calculating the precise thickness required based on your unique circumstances and requirements, thereby ensuring a safe and effective installation.

Understanding Different Types of Car Hoists and Their Concrete Thickness Requirements

It is essential to recognise that various types of car hoists have specific requirements regarding concrete thickness. Two-post lifts and four-post lifts are two popular options among homeowners aiming to incorporate a car hoist into their garage. Understanding these distinctions can significantly impact your planning and installation process.

Two-post lifts typically concentrate pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This ensures stability and helps prevent cracking.

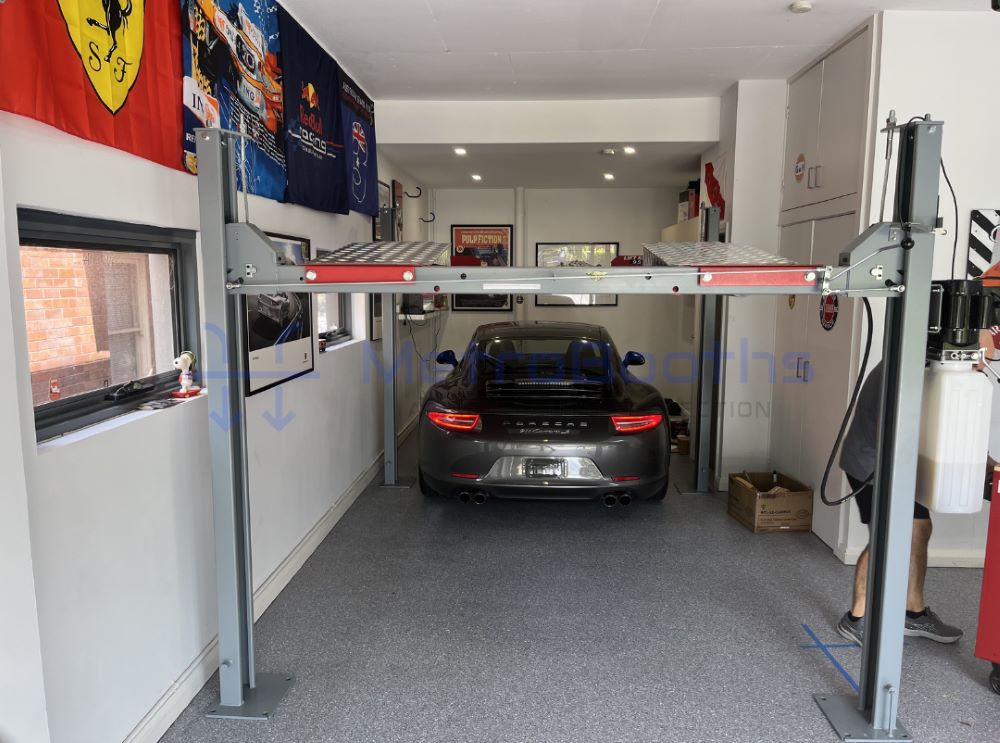

Conversely, four-post lifts distribute weight more uniformly across a larger area, enabling them to function effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This knowledge is critical for making informed decisions about your garage setup.

Always refer to the manufacturer’s specifications for the hoist you are considering, as they will typically outline the minimum concrete thickness required for safe operation. Following these guidelines is essential for optimal performance and the longevity of your hoist.

Keep in mind that these recommendations serve as general guidelines. Your specific needs may vary depending on the configuration of your garage and the types of vehicles you intend to lift, so customising your approach is advisable.

Recognising the Significance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is equally as important as its thickness. Stronger concrete can often be effectively utilised at a thinner depth while still providing adequate support for heavy loads. This is particularly relevant in the context of a car hoist installation, as it directly impacts safety and performance.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications involving heavy-duty use and frequent vehicle lifting. This ensures that your installation can withstand the demands placed upon it.

Incorporating reinforcement techniques is vital for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly improve the overall strength of your concrete floor. Consequently, this could enable you to utilise a thinner slab while still ensuring it can effectively support heavy loads during operation.

For most home garages, SL82 mesh presents a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs, making it an economical choice for budget-conscious homeowners.

If you have concerns about potential cracking, consider integrating fibres into your concrete mix. This inclusion can assist in reducing the formation and propagation of small cracks over time, enhancing the longevity of your installation and maintaining the aesthetic quality of your garage.

Key Installation Factors for Achieving Successful Car Hoist Operation

When installing a car hoist, meticulous site preparation and ongoing floor maintenance are of utmost importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your valuable investment and ensuring peace of mind.

Crucial Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before the installation of your car hoist, it is imperative to confirm that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is essential to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability, thus preventing issues during operation.

Avoid placing the hoist over expansion joints or weak areas of concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately evaluate its condition, ensuring a safe and effective installation.

Critical Ongoing Maintenance Practices Following Your Car Hoist Installation

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and promptly address any issues to prevent larger complications that could affect the functionality and safety of your hoist.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, thereby extending its lifespan and maintaining an attractive garage environment.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage, allowing you to operate your hoist with confidence.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a valuable investment for your garage.

Frequently Asked Questions About Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequently asked questions related to the concrete requirements for various types of lifts, providing you with the knowledge needed to make informed decisions.

What is the recommended minimum concrete thickness for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer’s specifications, as certain models may require thicker slabs for safe operation, ensuring that your installation complies with all safety standards.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, providing you with peace of mind and ensuring a successful installation process.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards that could endanger lives and property. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, accommodating a wider variety of vehicles.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It’s advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring a safe environment for vehicle lifting.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, helping you to avoid potential hazards.
