Shed Wiring Tips: Essential Installation Advice for Electricians

If you own a shed on your acreage property and are tired of relying on extension leads from your home, it is crucial to consider having it properly wired for safety and functionality. Whether you have a basic storage shed that needs a light and a power point or a fully equipped workshop for operating welders and compressors, following the correct procedure is essential. In NSW, the only legal and safe way to accomplish this is by hiring a licensed electrician who is trained to handle such installations.

This comprehensive guide details the necessary steps to provide power to your shed, highlights what your electrician needs to install, and gives an estimate of the costs you can expect in the Mid North Coast area.

Kick Off Your Shed Wiring Project with the Right Cable Run Strategy

The foundation of any successful shed wiring project lies in establishing a dependable power source that connects from your main switchboard to your shed. Depending on the layout of your property, this distance can vary significantly, potentially ranging from 30 to over 100 metres. The longer the cable run, the larger the cable size required to mitigate voltage drop, ensuring that your shed receives adequate power efficiently and effectively.

You essentially have two main options for your cable run:

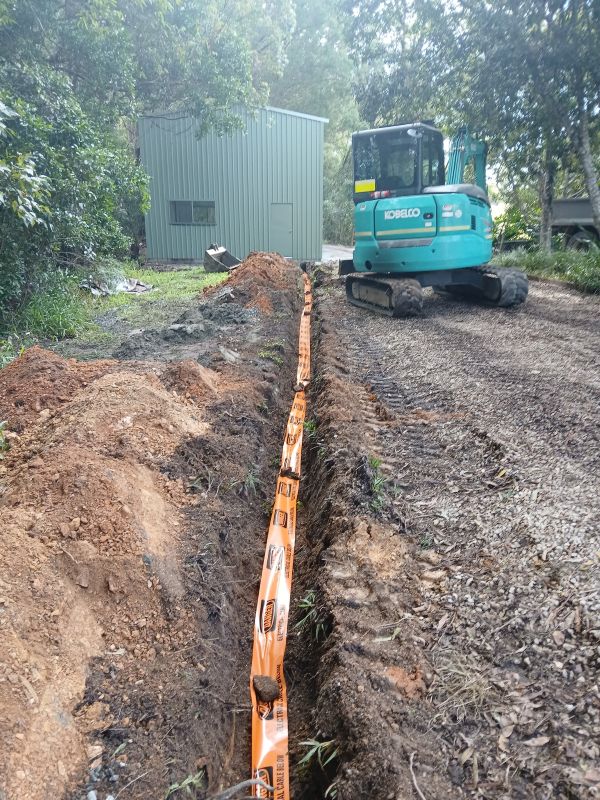

• Underground cable run — This method is the most preferred and aesthetically pleasing option. A licensed electrician will securely install heavy-duty cable through orange conduit, buried at least 500mm deep (or deeper if vehicles are expected to traverse the area). This approach protects the cable from adverse weather conditions, wildlife, and falling branches, making it the ideal choice for most acreage properties.
• Overhead cable run — Although less common in modern installations, this option may be necessary if you encounter solid rock or difficult terrain that complicates trenching. Overhead installations must adhere to specific clearance heights and support poles, which can significantly increase overall costs.

For most properties located in Bellingen, Coffs Harbour, and the Mid North Coast, the underground option remains the best choice. Your electrician in Bellingen can evaluate your site and recommend the most effective installation route.

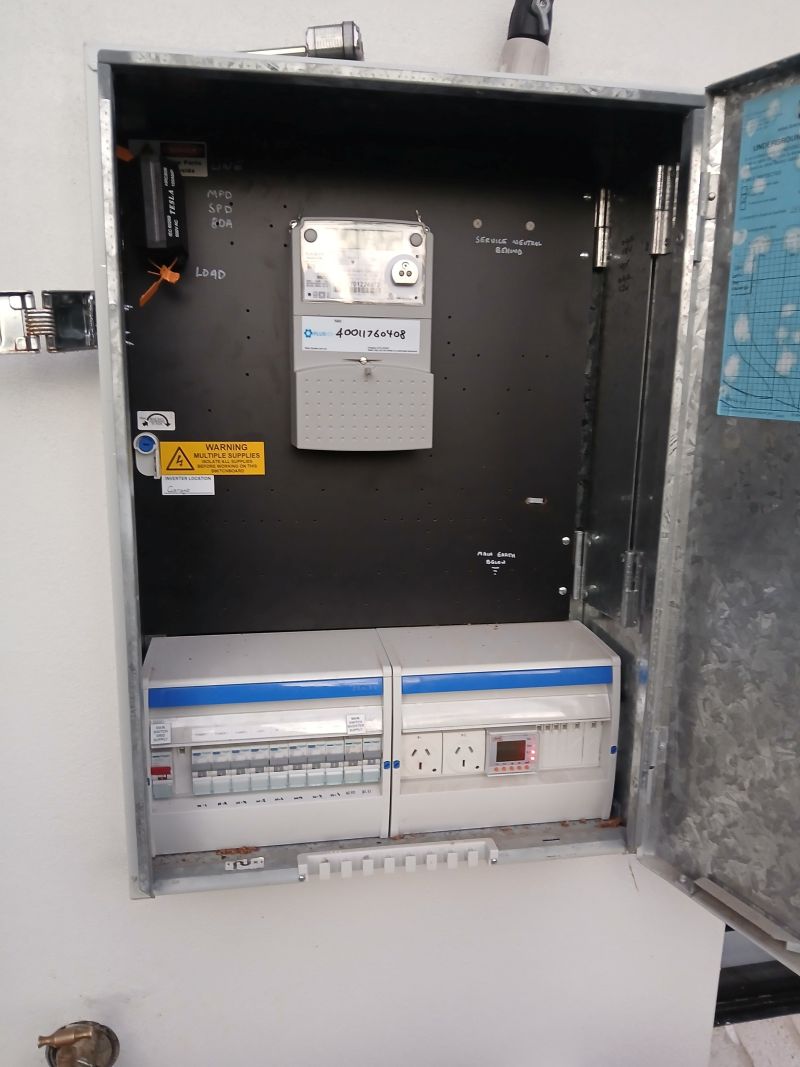

Set Up a Dedicated Sub-Board for Efficient Shed Power Management

Simply running a single cable to the shed is not sufficient if you want to plug in devices safely. Any shed that receives a proper power supply must be equipped with its own dedicated sub-board, also known as a distribution board. This setup acts as a mini switchboard within the shed, effectively managing all the electrical circuits and ensuring safe operation.

Your sub-board will typically consist of the following essential components:

• Main switch — This switch allows you to isolate all power to the shed independently from the main house, providing an added layer of safety and convenience.
• RCDs (safety switches) — These devices are mandatory under NSW electrical regulations. They instantly cut the power in milliseconds if a fault occurs, which is vital in a shed environment that is often exposed to moisture, dust, and potential damage.
• Circuit breakers — These offer individual protection for each circuit in your shed, covering lighting, general power, and dedicated tool circuits, ensuring that you can operate multiple devices without the risk of overload.

If your house’s main switchboard is older, your electrician may recommend upgrading the switchboard to accommodate the additional load directed to the shed, ensuring that all connections are secure and efficient.

What Essential Equipment Should Be Installed Inside Your Shed for Optimal Functionality?

The specific installations performed by your electrician inside the shed will be tailored to its intended purpose. Below is a detailed breakdown of what these installations commonly include.

Optimising a Basic Storage Shed Setup for Enhanced Usability

For a shed primarily intended for storing tools, a ride-on mower, or general equipment, consider the following crucial installations:

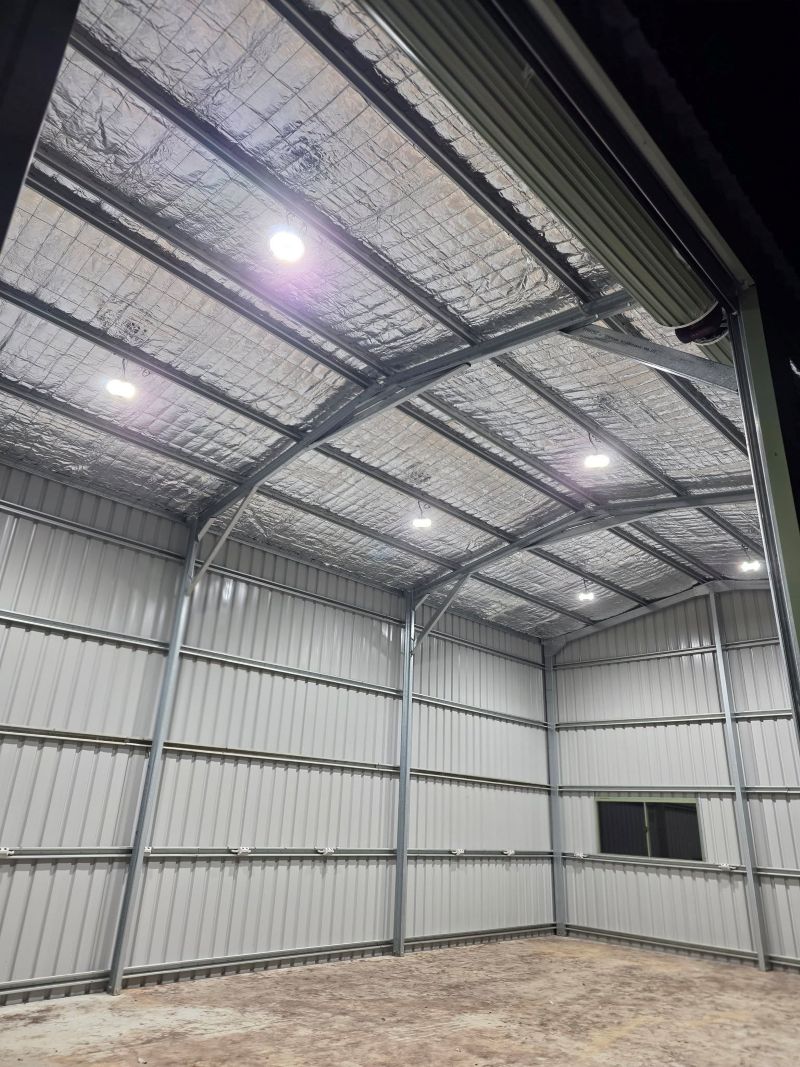

• LED batten lights — Installing one or two ceiling-mounted LED battens can effectively illuminate the entire shed space. Your trusted electrician can provide advice on the most suitable lighting layout based on the shed’s dimensions and your specific storage needs.

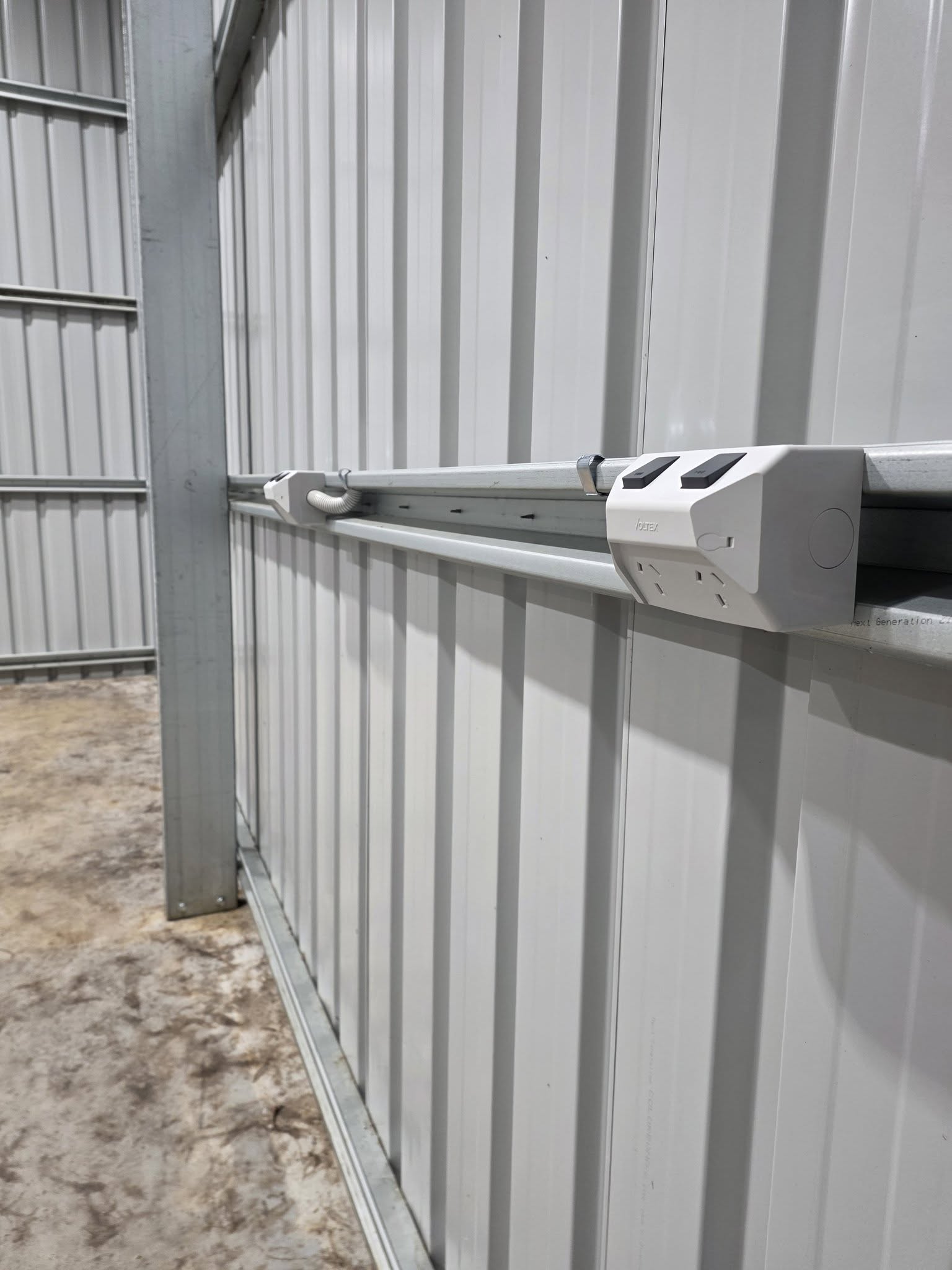

• Two to four general power points — This number is typically sufficient for plugging in chargers, radios, or a drop saw whenever needed. Standard power points and switches will operate on a single circuit, ensuring versatility for various tools.
• External light — An outdoor-rated LED light above the door ensures safe access to the shed during the night, enhancing both safety and convenience.

Designing a Fully Powered Workshop Shed for Increased Efficiency

If you frequently use power tools such as drop saws, bench grinders, or dust extractors, your wiring requirements will extend beyond basic setups and necessitate careful planning:

• Multiple circuits — Create separate circuits for lighting, general power, and specialised power tool outlets. This configuration prevents the lights from flickering every time you activate a saw, ensuring a stable working environment.
• Higher-rated power points — Install 15-amp or 20-amp outlets to effectively accommodate heavier tools, ensuring you have the right power supply for your equipment.
• Increased number of power points with optimal placement — Ensure outlets are positioned at bench height instead of solely at skirting level, facilitating ease of use based on your workbench arrangement.
• Dedicated lighting — Provide brighter, targeted lighting over work areas, utilising LED high-bays for larger sheds to enhance visibility and safety.

For comprehensive guidance on establishing dedicated circuits for heavy tools, check out Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which delves into the specifics of effective wiring solutions.

Equipping a Comprehensive Workshop with Essential Three-Phase Power for Heavy Machinery

If your activities involve heavy machinery such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying solely on single-phase power may not meet your needs. This is where three-phase power becomes essential to adequately support your demands.

Three-phase power offers a more stable and higher-capacity power supply, allowing you to operate multiple heavy-duty machines simultaneously without compromising performance. Your electrician will need to:

• Organise a three-phase supply from your energy distributor (this process can take several weeks in the Mid North Coast region).
• Install a three-phase sub-board in your shed, complete with the necessary breakers and RCDs to ensure safety and compliance.
• Utilise heavier cabling — Keep in mind that three-phase cable runs can be more expensive, particularly over longer distances, so careful planning is vital.
• Set up three-phase outlets — These heavy-duty sockets are specifically rated for the equipment you plan to operate, providing the necessary power for effective functioning.

If you’re unsure whether you require three-phase power, read Do I Need Three-Phase Power on My Property? — this resource discusses when it is beneficial and when a properly configured single-phase system will suffice. We also provide full three-phase switchboard installation if that aligns with your requirements.

Why You Should Invest in Essential Surge Protection for Your Shed

Properties on the Mid North Coast frequently experience intense lightning storms. A direct or nearby strike can potentially damage everything in your shed, including tools, chargers, fridges, and any devices connected, leading to costly repairs.

Investing in a reliable surge protection device, installed within the sub-board, serves as inexpensive insurance against electrical surges. It absorbs voltage spikes before they can reach and damage your valuable equipment. For sheds containing costly tools or workshop setups, this measure proves invaluable and could save you significant costs in the long run.

If your property also utilises a generator for backup power, your electrician can install a generator changeover switch, ensuring that both the shed and the house can safely switch to generator power during outages, thereby maintaining critical operations during emergencies.

What Are the Requirements for Council Approval and Compliance in NSW?

Here are several important considerations to keep in mind:

• All electrical work in NSW must be performed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to save on labour costs, all electrical work — including cabling, connections, and sub-board installation — must be handled by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion.
• Depth of underground cable must comply with AS/NZS 3000 (the Wiring Rules), a standard your electrician will ensure compliance with during the installation process.
• If the shed is newly constructed, you may need development approval depending on your local council and the size of the shed. While the electrical work itself might not require a separate permit, the overall construction may necessitate one.

Hack-It Electrical Solutions proudly holds the NSW Electrical Contractor Licence #230609C. We provide a compliance certificate for every job we complete, ensuring peace of mind and adherence to local regulations.

Understanding the Costs Involved in Shed Wiring on Acreage Properties

Each shed presents unique challenges — including its distance from the house, whether you require single-phase or three-phase power, the number of circuits needed, and soil conditions impacting trenching. However, here’s a realistic cost guide for the Mid North Coast area:

• Basic shed wiring (lighting + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase power, dedicated circuits, and surge protection — Starting from $8,000+

Be aware that longer cable runs (50m or more), rocky terrain requiring specialised equipment, or upgrades to three-phase supply will all increase costs. The most effective way to obtain an accurate estimate is to have your electrician visit your property, assess the cable route, and gain a clear understanding of your shed’s intended use and requirements.

If you want a straightforward quote for your specific setup, feel free to call us at 0402 079 803 or contact us here.

What Are the Most Commonly Asked Questions About Shed Wiring in NSW?

Can I Legally Wire My Shed Myself in NSW?

No, absolutely not. All electrical work in NSW must be conducted by a licensed electrician. This includes essential tasks such as running cables to the shed, installing the sub-board, power points, lighting, and more. Engaging in DIY electrical work is illegal and poses significant dangers to you and your property. Your electrician will issue a Certificate of Compliance once the work has been completed, ensuring everything meets safety standards and regulations.

How Deep Must Underground Cable Be Buried to Comply with Safety Standards?

According to the Australian Wiring Rules (AS/NZS 3000), underground cable installed in conduit should be buried a minimum of 500mm deep under normal conditions. If vehicles are expected to drive over the cable route, the cable must be buried deeper, typically around 600mm or more. Your electrician will determine the appropriate depth for your specific property circumstances, ensuring compliance with safety regulations to prevent hazards.

Do I Need a Separate Meter for My Shed in NSW?

In most cases, the answer is no. The shed’s sub-board connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed serves as a standalone dwelling or commercial premises, which involves discussions with both the council and your energy distributor to ensure compliance with local regulations.

How Long Does It Typically Take to Wire a Shed on Acreage?

A basic shed wiring job, which includes trenching, cable installation, sub-board setup, lighting, and power points, typically takes between one to two days once the trench has been prepared. If you’re digging the trench yourself, your electrician can provide guidance on the precise route and depth before you begin. Keep in mind that three-phase jobs may take longer due to the need to arrange the supply connection with the distributor first.

Can I Run Power From the Shed to Other Buildings on My Property?

Yes, you can. However, each additional building will require its own appropriately rated cable run and may need its own sub-board depending on the load. Your electrician can design a comprehensive layout across multiple buildings to ensure that the cabling and switchboard capacity are sufficient from the outset, rather than trying to add components later and potentially creating issues with power distribution.

Ensure Your Shed Wiring is Done Right with Professional Assistance

If you are located on acreage near Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere across the Mid North Coast, Hack-It Electrical Solutions is here to assist you in setting up your shed correctly — whether it involves a basic lighting and power setup or a comprehensive three-phase workshop installation tailored to your specific needs.

Give us a call at 0402 079 803 or reach out through our website to schedule a site visit. We will survey your property, determine the optimal cable route, and provide you with a straightforward quote that meets your requirements.
